Product Description

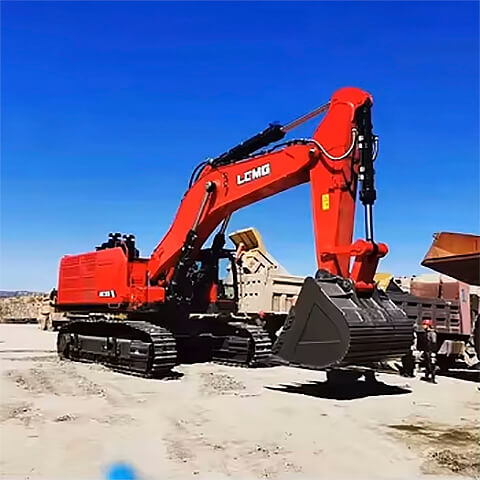

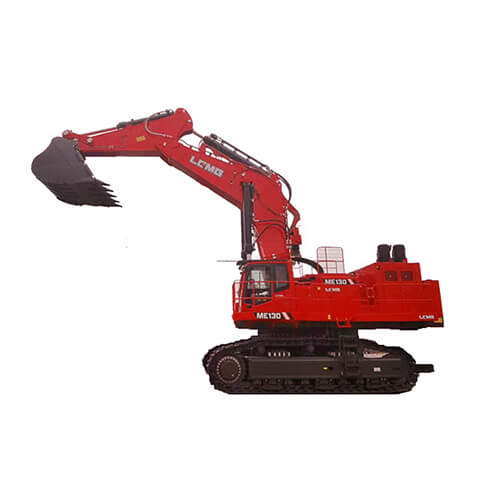

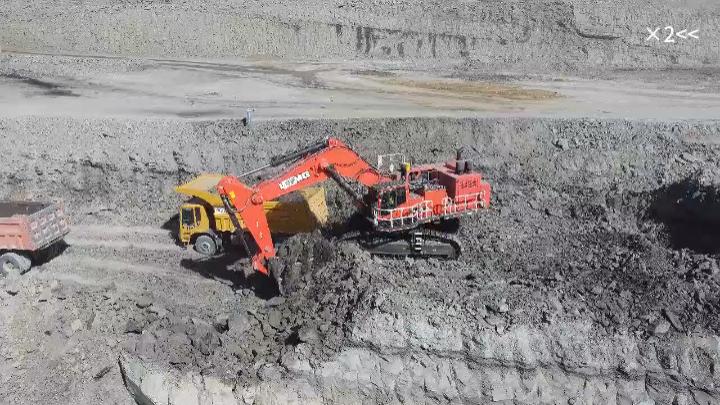

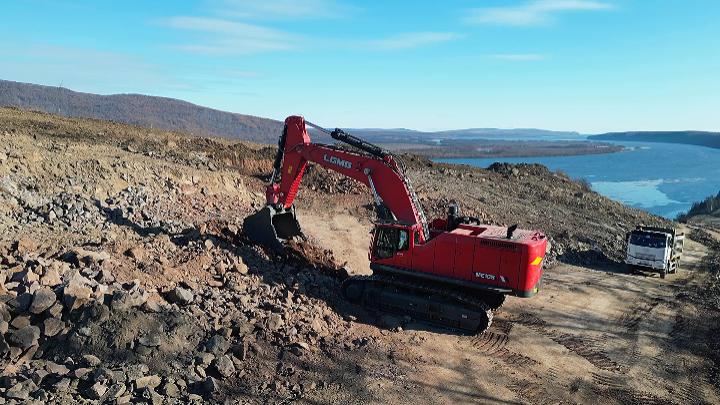

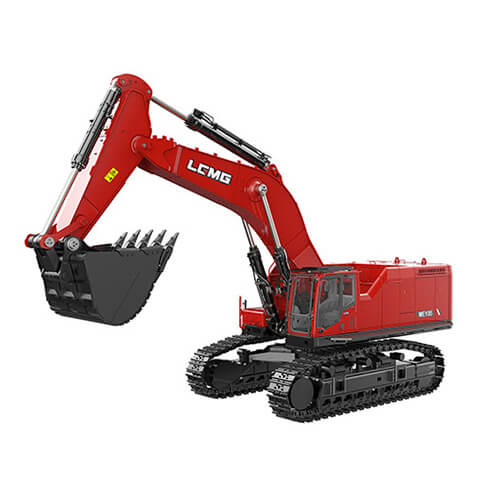

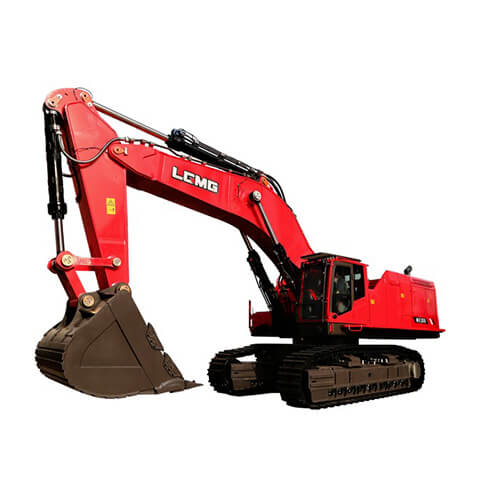

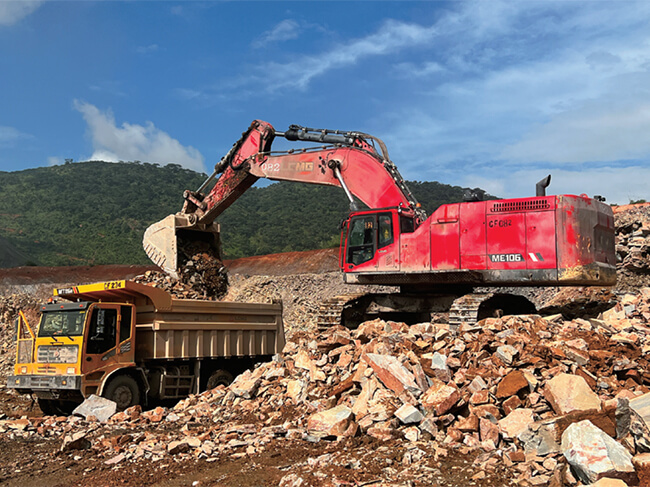

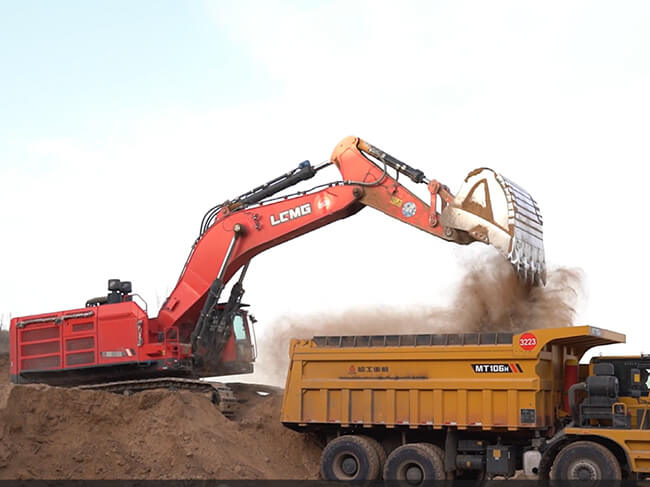

ME series mining excavators are called on to do a variety of tasks, from working a shot face to top loading trucks with overburden to cracking out a virgin bank. ME series large excavators are designed to do all those tasks fast and efficiently to maximize production.
Efficient operation
Adopting the original imported Cummins engine, the original Japanese hydraulic system, the whole machine is highly efficient and energy-saving, with dual independent cooling systems and high-strength working devices.
Safe and convenient
Equipped with oil cylinder explosion-proof valve, semi-automatic lubrication system, safe construction and convenient maintenance, high-strength cab, emergency switch of protective net, auxiliary driving imaging system, fast maintenance channel, and independent electronic control diagnosis system.
Good controllability
Excellent system matching, full electronic control system, and fast action.
Specification
| Model | ME105 | ME106 | ME130 |
| Machine weight (kg) | 102000 | 102000 | 125000 |
| Bucket capacity (m3) | 6.5-8 | 6.5-8 | 7.5-10 |
| Engine | Perkins 2806IIIN | Perkins 2806IIIN | Cummins QSK23-C |
| Rated power (kW) | 570.5 | 570.5 | 567 |
| Maximum digging force (kN) | 514 | 514 | 610 |
| Average ground pressure (kPa) | 127.4 | 127.4 | 153.6 |
| Travel speed (low/high) (km/h) | 2.3-3.8 | 2.3-3.8 | 2.3/3.3 |
| Gradability (°) | 35 | 35 | 35 |
| Maximum digging radius (mm) | 12530 | 12530 | 13740 |
| Maximum digging depth (mm) | 7110 | 7110 | 7960 |
| Maximum unloading height | 8040 | 8040 | 8135 |
| Machine dimensions (mm) | 13700×4510×5200 | 13700×4510×5200 | 14750×5480×6300 |
| Working range | |||
| A-Maximum digging range (mm) | 12530 | 12530 | 13740 |
| B-Maximum ground digging distance (mm) | 12210 | 12210 | 13330 |
| C-Maximum digging depth (mm) | 7110 | 7110 | 7960 |
| D-Maximum digging depth (2.44 meters) (mm) | 6970 | 6970 | 7830 |
| E-Maximum vertical digging depth (mm) | 4700 | 4700 | 4440 |
| F-Maximum digging height (mm) | 12300 | 12300 | 12480 |
| G-Maximum unloading height (mm) | 8040 | 8040 | 8135 |
| H-Minimum front turning radius (mm) | 4990 | 4990 | 6770 |
