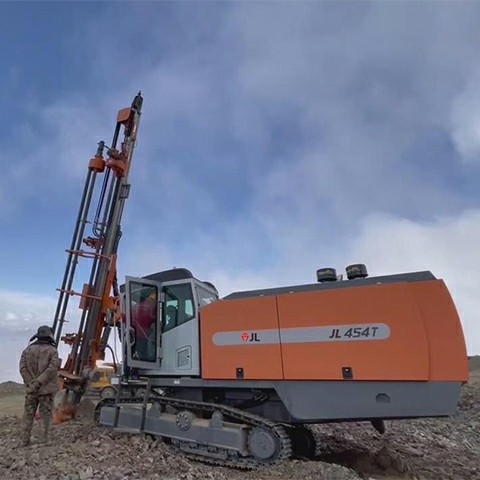

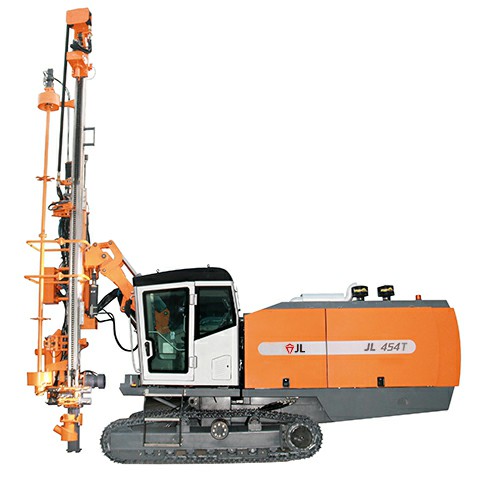

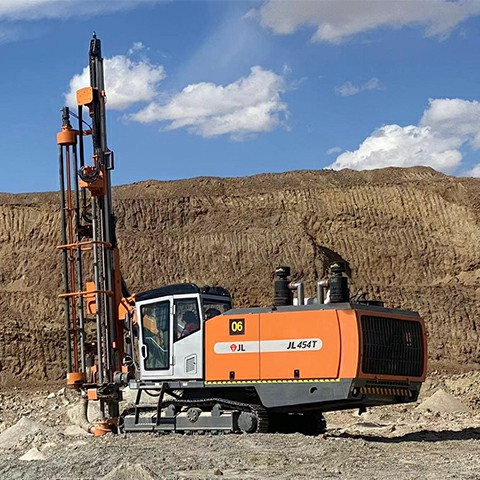

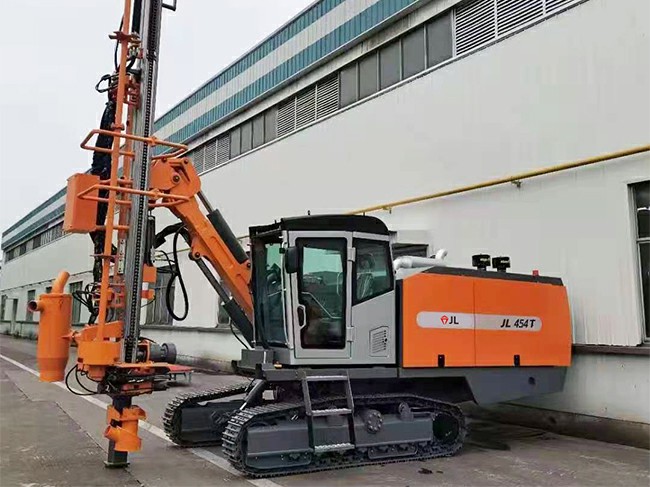

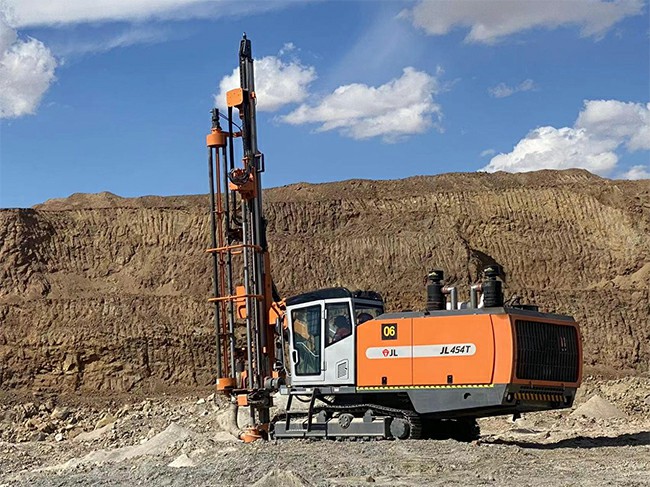

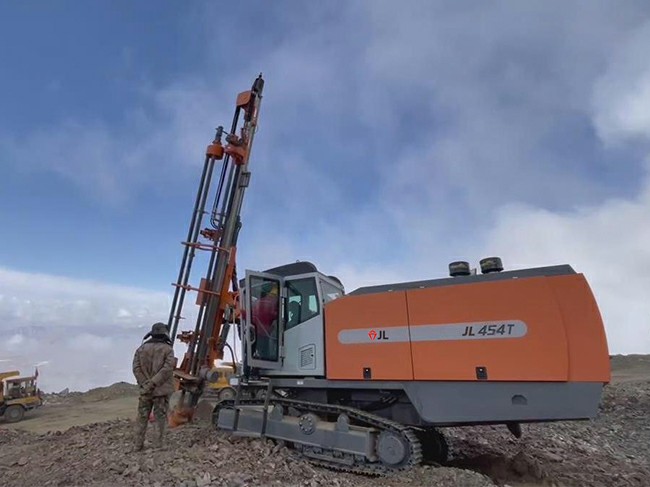

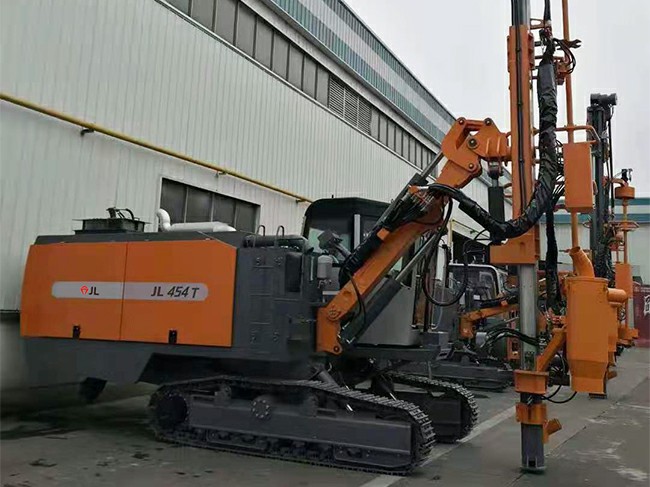

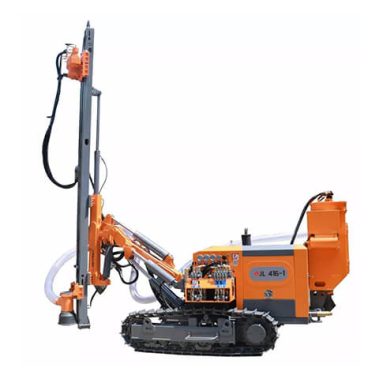

Product Description
Automatic drill pipe handling system with powerful off-road performance for less rig preparation time. Large displacement and high pressure screw air compressor for thorough flushing, to highly increase rock drilling speed and reduce the consumption of drilling tools. Powerful feeding and rotation design for less jamming in complex rock situation.Single operator for labor costs.
High Efficiency
Automatic drill pipe handling system with powerful off-road performance for less rig preparation time. Large displacement and high pressure screw air compressor for thorough flushing, to highly increase rock drilling speed and reduce the consumption of drilling tools. Powerful feeding and rotation design for less jamming in complex rock situation.Single operator for labor costs.
Environmental Friendly
The standard two-stage dry type dust collector (option water mist system) for much less pollution to the equipment itself, and also environment friendly.
Energy Saving
Single diesel engine for both the screw air compressor and the hydraulic system, compared with separated drill rig, the total power output of the diesel engine reduced by about 35%, and the maintenance cost lowered by 50%.
Safety
The track oscillation system for more stable center of gravity of the drill rig. The powerful performance for less numbers of equipment and personnel required for the mine. The protection design of the cab and drill pipe carousel for personnel protection from possible danger.
Specification
| Recommended Aperture Range | |
| Aperture range | φ110-152mm |
| Applicable down-the-hole impactor | 4"/5" |
| Rod change system capability | |
| Storage Rod Quantity | 6+1 |
| Drill pipe outer diameter | 89/102mm |
| Drill pipe length | 4M |
| Automatic Rod Change Hole Depth | 28M |
| hydraulic swivel head | |
| Swing speed | 0-105rpm |
| working torque | 4,310Nm |
| engine | |
| Steyr/Cummins | |
| rated power | 266KW @ 1，850 |
| emission level | 3 |
| Fuel tank | |
| capacity | 480L |
| air compressor | |
| work pressure | 20 Bar |
| Displacement | 18m3/min |
| Boom type | High Strength Single Straight Arm |
| push beam | |
| total length | 8,100mm |
| advance process | 4,600mm |
| advance compensation | 1,200mm |
| advance speed | 0.88m/s |
| propulsion | 34.5kN |
| Pulling force | 67.6kN |
| chassis | |
| Walking speed | 3km/h |
| driving force | 117.7kN |
| Gradeability | 30º |
| Track frame swing angle | ±10º |
| Ground clearance | 420mm |
| Shipping size (excluding optional parts) approx. | |
| weight | 21,000kg |
| width | 2,500mm |
| length | 10,260mm |
| high | 3,280mm |
