Product Description

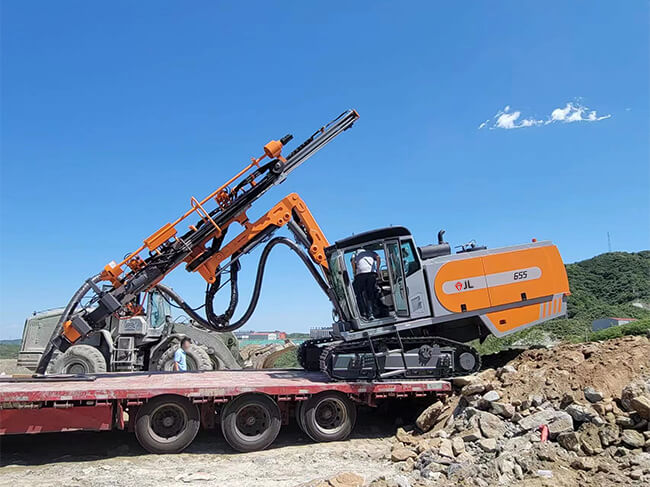

The JL650A/JL655 high-frequency hydraulic rock drill adopts a slender impact piston design, which reduces the peak value of the stress wave, prolongs the service life of the drilling tool, and improves the rock drilling ability.
01
The track leveling device makes the center of gravity of the drilling rig more stable up and down the slope, and the track adhesion is stronger. The protective design of the drilling tool compartment and cab eliminates personnel safety hazards.
02
Multiple holes can be drilled in a single positioning, and the flexible drilling arm and off-road capabilities allow for drilling in a wide range of pristine terrain.
03
Equipped with self-designed ZY103/ZY104H high-frequency hydraulic rock drill, which makes the unit energy consumption of the drilling rig unparalleled competitive.
Specification

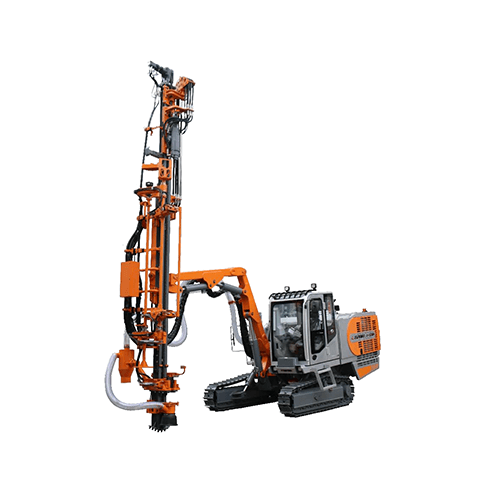

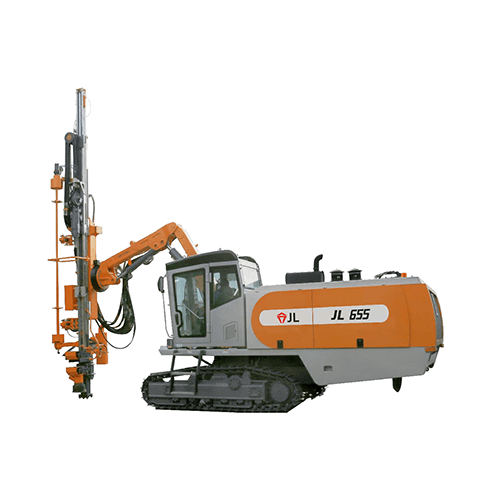

| Model | JL650A | JL655 |
| Weight | 11,000 kg | 14,100 kg |
| Dimensions (LxWxH) | 11,560×2,700×3,560 mm | 11,300×2,550×3,100 mm |
| standard engine | Cummins/119 kW Engine China III | Cummins/154 kW Engine China IV |
| Drifter model | ZY103 | ZY104H |
| Drifter power | 15 kW | 20 kW |
| Drilling hole diameter | Φ45-102 mm | Φ64-115 mm |
| Drilling rod | T38/T45×3,660 mm | T45/T51× 3,660 mm |
| Diesel tank volume | 280 L | 340 L |
