Product Description

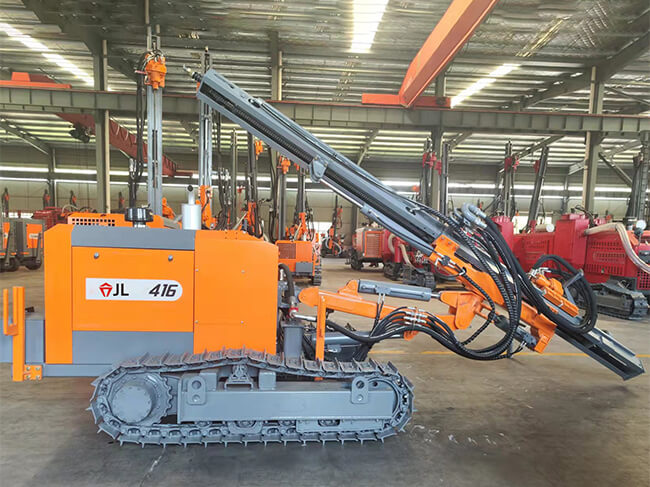

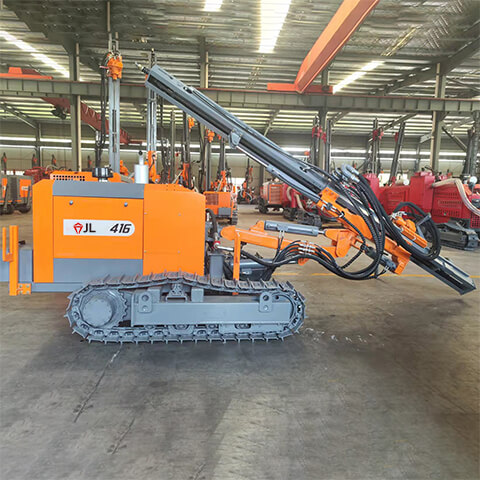

JL-416 is configured with a powerful dual-motor driven rotary head and its rotary can reach 1,950N.m, and its rotary speed is adjustable combined with a multi-way regulating valve. JL-416 meets the requirement to drill diameter of Φ130mm hole with Φ76mm drill pipe.
Product Features
01

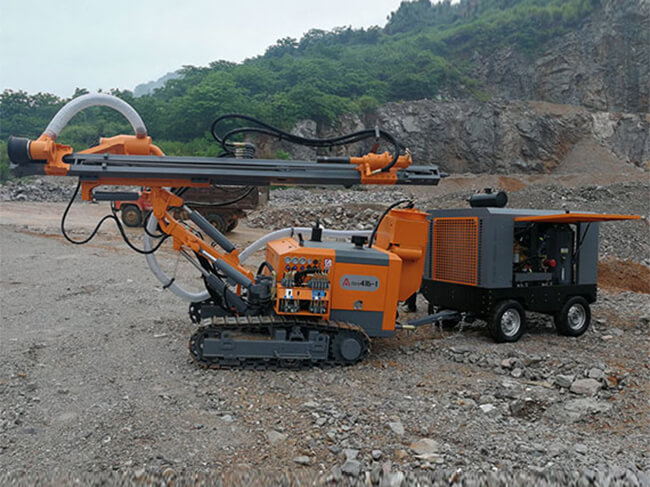

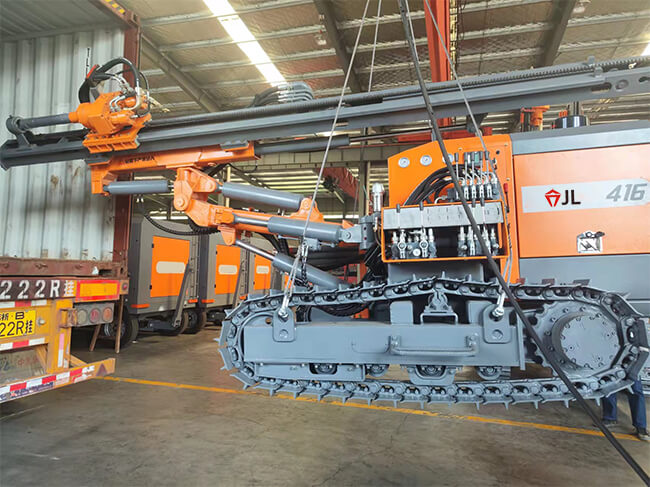

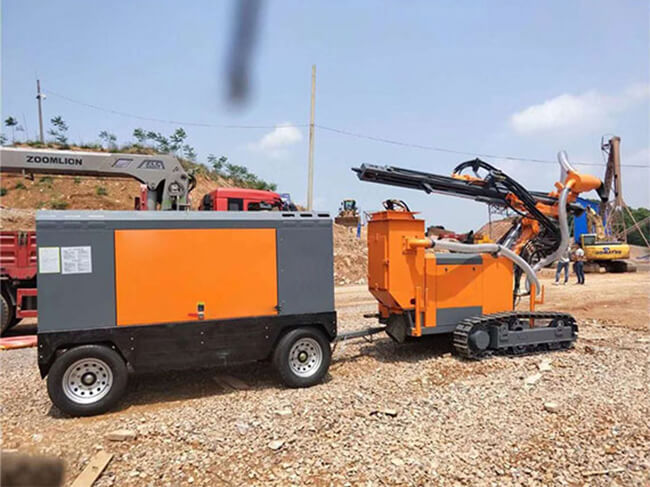

The JL-416 drill series standard configures with construction crawler and piston hydraulic motor driven, which contributed stronger traction force, more stable and reliable, capable to the complex geological and difficulty terrains of open-pit mines.
02
Centralized ergonomic control console for easy operation, increased drilling efficiency, increased operational safety and comfort.
03
Equipped with our own developed dry dust collection system for high efficiency & more eco-friendly.
Specification
| General Specificaion | ||
| Drill Pipe Sizes | φ60x3,000mm | |
| Hole Range | φ90-127mm | |
| Rotation torque(Max.) | 1,950N.m | |
| Rotation Speed | 0-150rpm | |
| Feed Force | 15kN | |
| Pull Up Force | 25kN | |
| Feed Type | Hydraulic&Cylinder -Chain | |
| Tramming Speed(Max.) | 2.5km/h | |
| Gradient | 25º | |
| Total Weight | 3,830 kg/4,270 kg | |
| Transportation Dimension (L*W*H) | 5,700*2,130*2,200 mm | |
| Diesel Engine Specifications | ||
| Rig Model | Power | Rated Power |
| JL-416 | Yuchai YC4DK80 | 58kW |

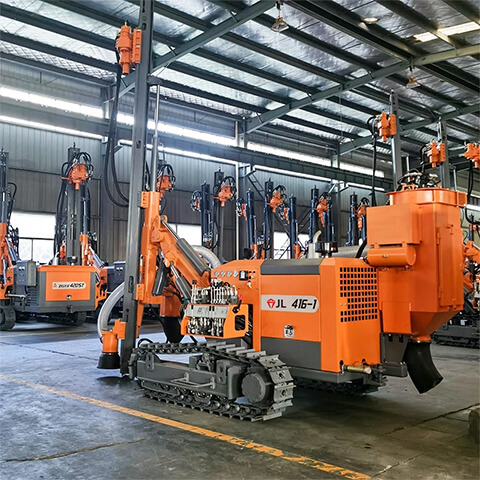

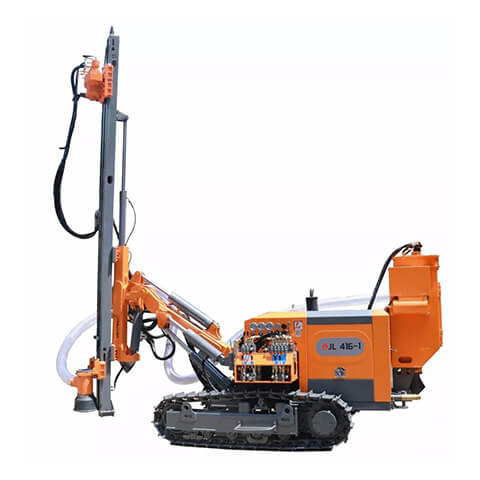

| JL-416-1 | Yuchai YC4DK80 | 58kW Dust collection system as Standard equipment |
