Product Description

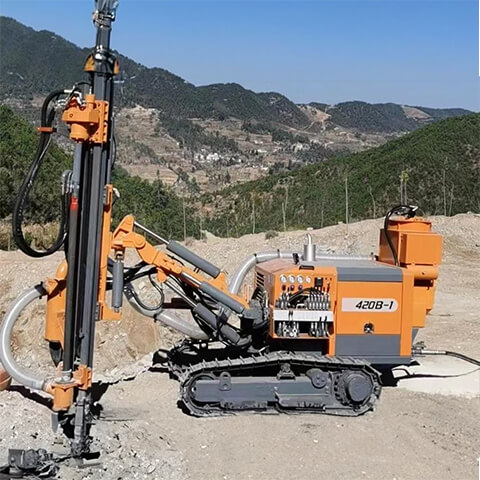

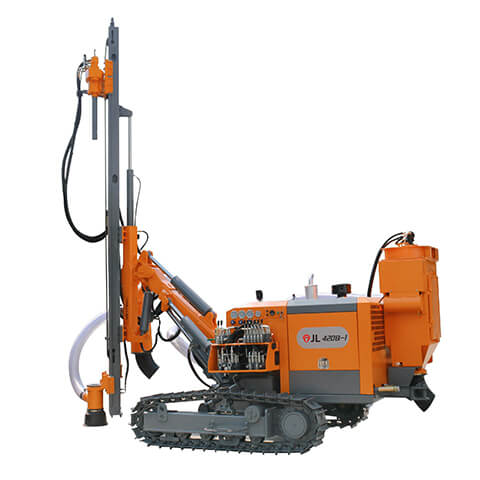

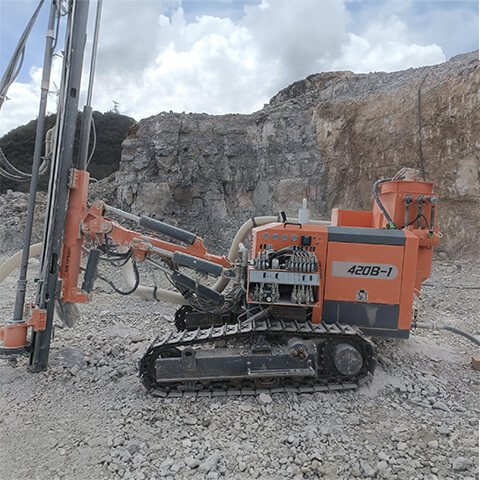

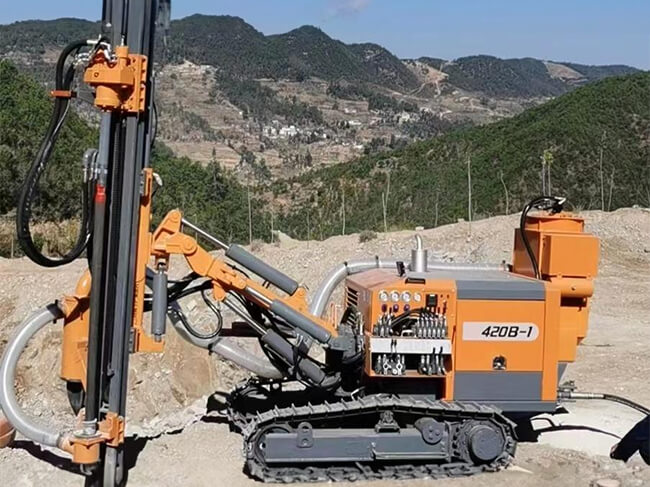

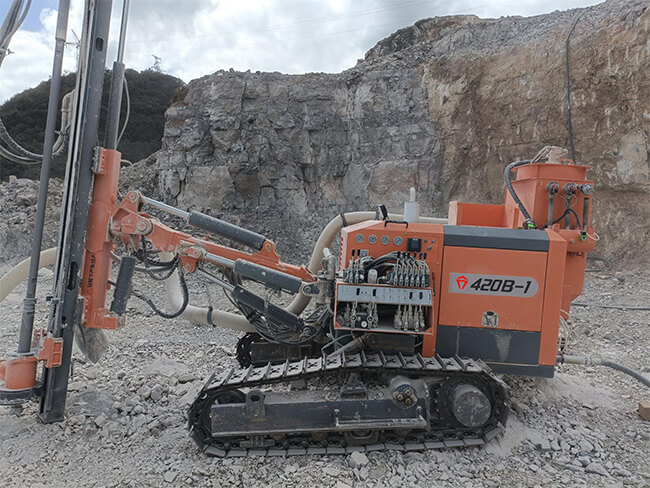

JL-420B/420B-1 is equipped with dual motor rotary head and slewing speed adjustable multi-way valve, with a slewing torque of up to 2200N.m, meeting the needs of 76 diameter drill pipe and 130 hole diameter. The rotation speed can reach up to 150 revolutions, which meets the needs of some customers for high-speed drilling of soft rock formations. At the same time, the 420 series models are equipped with engineering tracks and plunger motors as standard, which increases the leveling function, improves the climbing and off-road nature of the equipment, can adapt to complex terrain conditions, and can punch vertical holes for slopes to meet the needs of different working conditions.
Product Features
01
JL-420B model uses double cycloid motor rotary head, high torque, fast speed, can meet the requirements of 76mm drill pipe, 130 hole diameter.
02
JL-420B series is equipped with engineering tracks and plunger motors as standard, making the product quality more reliable, the walking drive stronger, and the complex geological and road environment of the open pit mine better adapted.
03
Centralized control of the operator station, easy to operate, improve work efficiency, increase the safety and comfort of operation.
04
JL-420B series drilling rigs add leveling function, improve the climbing and off-road nature of the equipment, can adapt to complex terrain conditions, and can punch vertical holes for slopes to meet the needs of different working conditions.
Specification
| General Specificaion | ||
| Drill Pipe Sizes | φ76x3,000mm | |
| Hole Range | φ90-130mm | |
| Rotation torque(Max.) | 2,200N.m | |
| Rotation Speed | 0-150rpm | |
| Feed Force | 15kN | |
| Pull Up Force | 25kN | |
| Feed Type | Hydraulic&Cylinder -Chain | |
| Tramming Speed(Max.) | 2.5km/h | |
| Gradient | 30º | |
| Track Frame Oscilation | +-10° | |
| Total Weight | 4,000 kg/4,400 kg | |
| Transportation Dimension (L*W*H) | 5,700*2,130*2,200 mm | |
| Diesel Engine Specifications | ||
| Rig Model | Power | Rated Power |
| JL-420B | Yuchai YC4DK80 | 58kW |
| JL-420B-1 | Yuchai YC4DK80 | 58kW Dust collection system as Standard equipment |
