Product Description

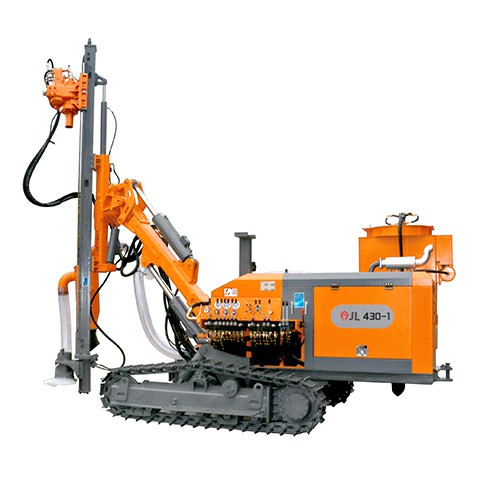

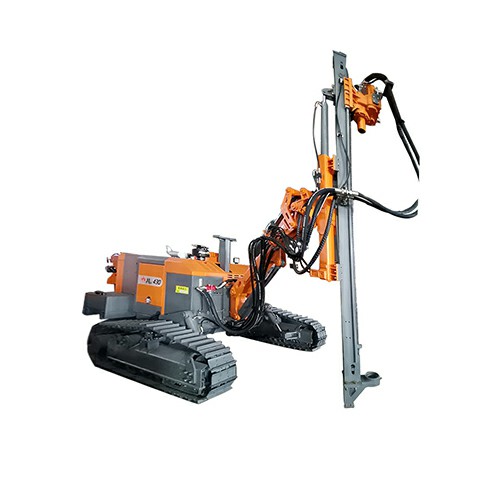

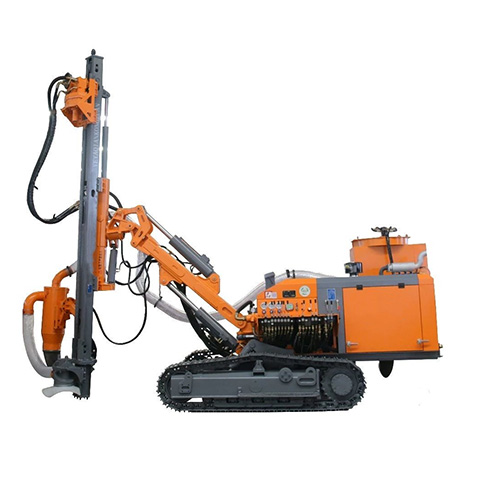

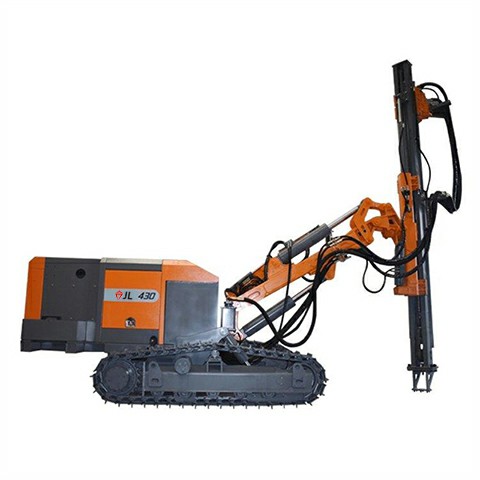

This type of drilling rig is a traditional heavy-duty split drilling rig. Its super-strength full-featured design and high-level configuration are widely recognized by the majority of users. The maximum rotation torque of 7000Nm is optional. It is suitable for pit foundation bolts, root canals, large diameters Twist drill pipe work.
Product Features
01

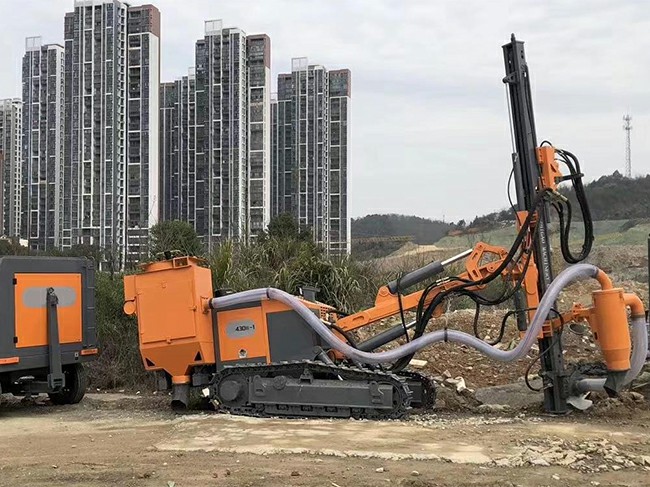

Large displacement dust collector for 165 mm hole dust collection requirements.
02
Heavy duty structure design for200 mm holle spiral drilling.
03
Maximum rotation torque up to 7,000 Nm.(optional)
04

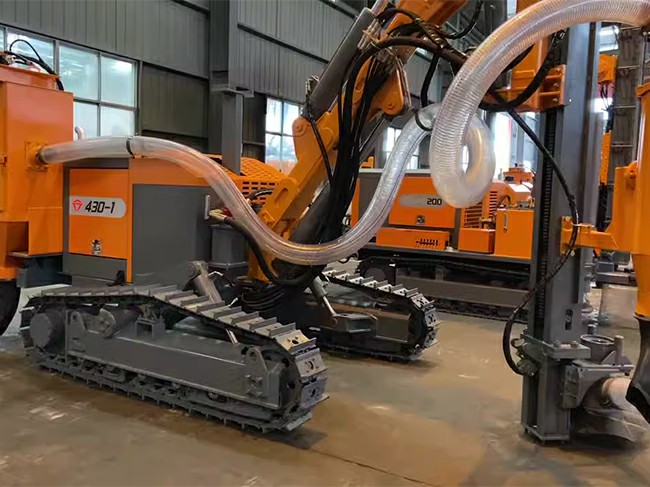

The heavy duty tramming mechanism with oscillation for various working conditions.
Specification
| JL-430/430-1 Separated DTH Surface Drill Rigs | ||
| General Specificaion | ||
| Hole Depth | 30m | |
| Drill Pipe Sizes | φ76x3,000mm | |
| Hole Range | φ110-165mm | |
| Equipped with impactor | 4"/5" | |
| Rotation torque(Max.) | 3,500 N.m | |
| Rotation Speed | 0-100rpm | |
| Air Working Pressure | 0.7-2.5Mpa | |
| F.A.D | 10-20m³/min | |
| Feed Force | 20kN | |
| Pull Up Force | 45kN | |
| Tramming Speed(Max.) | 3km/h | |
| Gradient | 30º | |
| Total Weight | 5,820kg/6,460kg | |
| Transportation Dimension(L*W*H) | 7，370*2,360*2,560 mm | |
| Dry Dust Collector | Optional | |
| Diesel Engine Specifications | ||
| Rig Model | Power | Rated Power |
| JL-430 | Yuchai YC4DK-80 | 58 KW |
| JL-430-1 | Yuchai YC4DK-100 | 73.5 KW |
